Contractor Preview
Start a ProStack Slot Lock support assembly with the base pad designed to receive its flanged blocks.
Why the Pros Buy This
- Recessed slots engage compatible block flanges.
- A 24 x 24 inch footprint provides the system base.

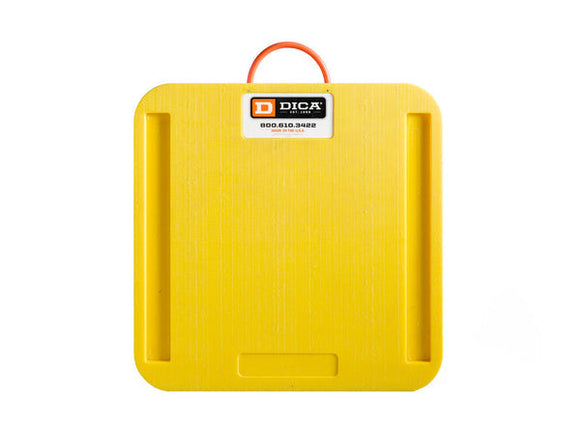

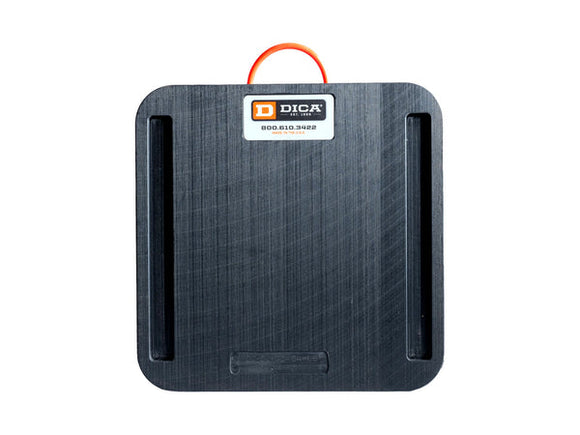

- Black and high-visibility yellow options are available.
Selection & Use
Base pad is 1.5 inches thick. Blocks and grip pads are sold separately. Published system ratings require the specified base-plus-block arrangement; follow DICA's assembly instructions.
Models & Options
| Manufacturer SKU | Size |
|---|---|
| PSC-SL-D2424-1.5 | 24"x24"x1.5" Black (Slot Lock) |
| PSC-SL-D2424-1.5-Y | 24"x24"x1.5" Hi-Viz Yellow (Slot Lock) |
Manufacturer Specifications
Values apply only to the listed models and specified setup. Working-load ratings do not establish the bearing capacity of the ground.
| MODEL | SLOT LOCK | DIMENSIONS (in) | APPROX AREA (sq ft) | WEIGHT (lbs) | MAX ALLOWABLE PRESSURE (psi) | WORKING LOAD LIMIT (lbs) |
|---|---|---|---|---|---|---|
| PSC-SL-D2424-1.5 | YES | 24 X 24 X 1.5 | 4 | 29 | 500 | 100,000 |
The 100,000 lb / 500 psi ratings require at least one matching base pad and two ProStack Slot Lock blocks; they are not standalone pad ratings.
Ordering Through Supply Haus
Price applies to the selected configuration. Supply Haus confirms supplier availability, freight requirements, and delivery timing. Images show the manufacturer's product family; dimensions and included components follow the selected model.
