Contractor Preview

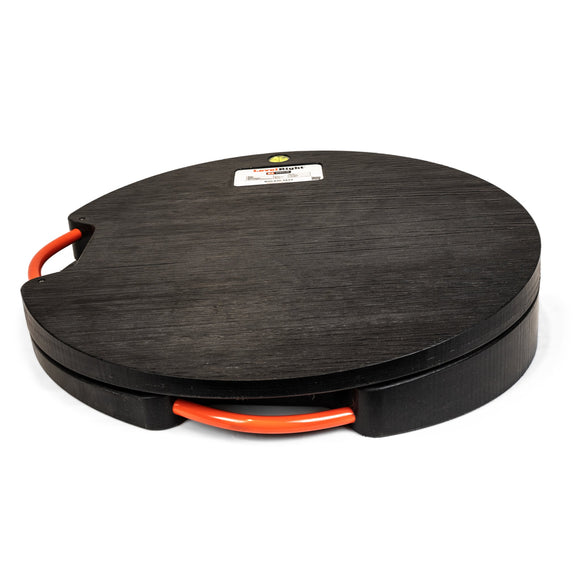

Bring an adjustable bearing surface to outrigger setups where the supporting surface needs leveling.
Why the Pros Buy This
- Rotating pad sections provide 0–10 degrees of adjustment in one plane.

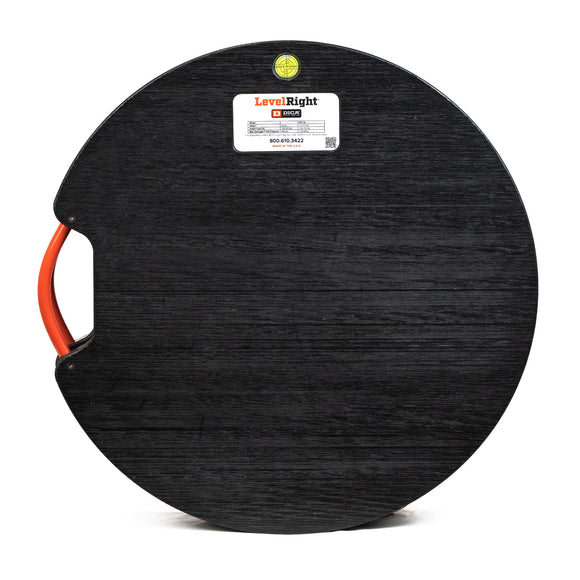

- A built-in bubble level helps check the bearing surface.
- Four diameters accommodate different outrigger float sizes.
Selection & Use
LevelRight must be used with suitable supporting material; it does not replace a ground-bearing assessment or correctly sized outrigger pad. Match the float and loading to the selected model.
Models & Options
| Manufacturer SKU | Size |
|---|---|
| LRST-12 | 12" |
| LRST-24 | 24" |
| LRST-30 | 30" |
| LRST-35 | 35" |
Manufacturer Specifications
Values apply only to the listed models and specified setup. Working-load ratings do not establish the bearing capacity of the ground.
| MODEL | D×H (in) | AREA (sq ft) | WEIGHT (lbs) | RATED CAPACITY (lbs) | MAXIMUM OUTRIGGER FLOAT PRESSURE (psi) |
|---|---|---|---|---|---|
| LRST-12 | 12 x 3 | 0.75 | 13 | 350,000 | 800 |
| LRST-24 | 24 x 4 | 3 | 50 | 350,000 | 800 |
| LRST-30 | 30 x 4 | 5 | 86 | 450,000 | 1,000 |
| LRST-35 | 35 x 4 | 7 | 120 | 450,000 | 1,000 |
Ordering Through Supply Haus
Price applies to the selected configuration. Supply Haus confirms supplier availability, freight requirements, and delivery timing. Images show the manufacturer's product family; dimensions and included components follow the selected model.
