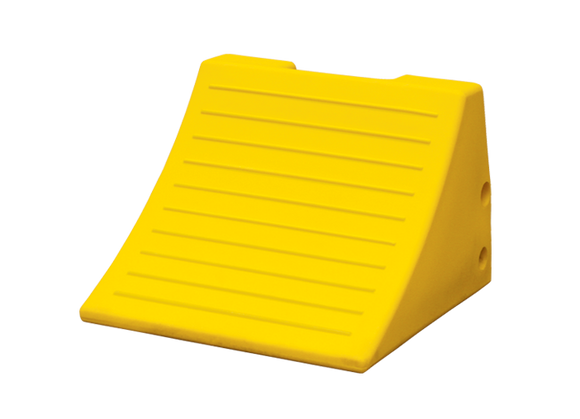

Checkers Heavy-Duty Chock, 46-65 in. Tire Dia., 122.5 Ton Capacity - MC3009

Select the MC3009 for mine-support vehicles such as lubrication trucks and heavy maintenance equipment. Its HDPE body and broad base suit large-tire applications.

Features and Applications

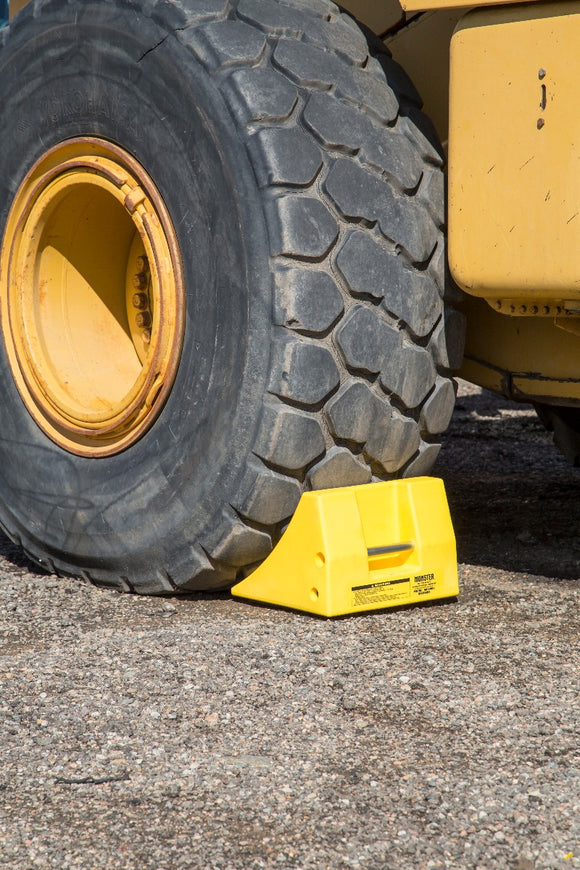

• Larger base supports positioning against the tire.
• Lightweight HDPE eases routine handling.
• Use gross operating weight and tire diameter for selection; payload is a separate rating.

Specifications

• Manufacturer model: MC3009
• Color: Yellow
• Length (Inches): 14.5
• Width (Inches): 14.5
• Height (Inches): 11
• Recommended Tire Diameter: 65 in.
• Max Operating Weight: 245,000 lbs. OR 122 tons
• Quantity Included: 1
• Sold As: Single

Selection and Use

Supply configuration: Single. Confirm dimensions, compatibility, and installation requirements against the manufacturer’s instructions before use.
