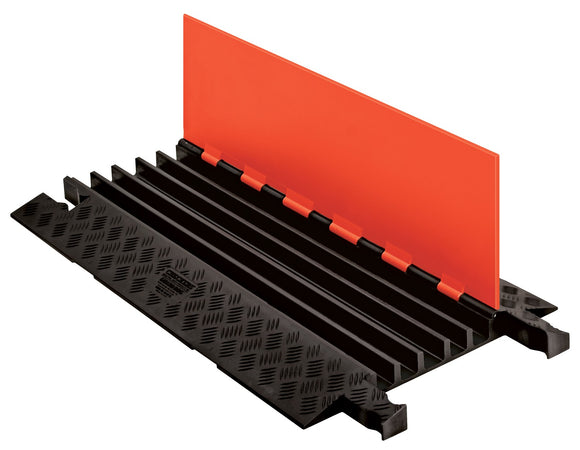

Checkers 5-Channel Guard Dog® Cable Protector 1.325" Lines, Orange Lid/Black Base - GD5X125-O/B

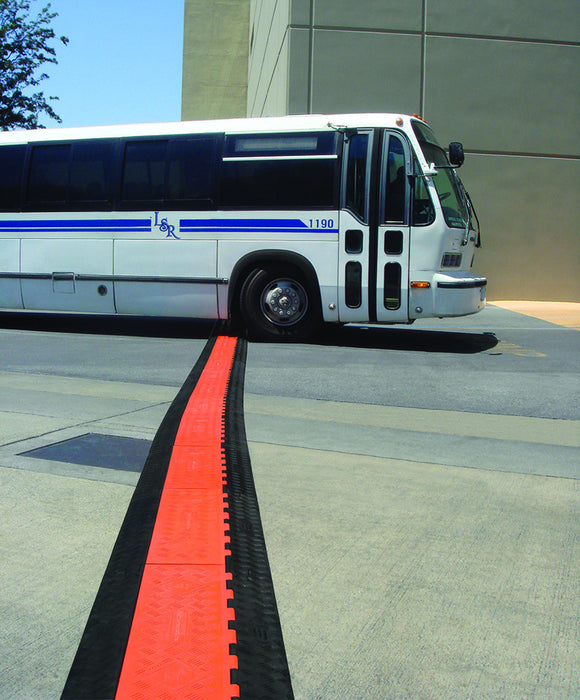

Route cables and hoses through five protected channels at commercial or industrial crossings. This Guard Dog section accepts lines up to 1.325 inches in outside diameter.

Features and Applications

• Dog Bone connectors join compatible sections.
• Hinged orange lid provides channel access over a black polyurethane base.
• Five-bar tread adds texture; four through-holes support securing the unit for longer-term installations.

Specifications

• Manufacturer model: GD5X125-O/B
• Color: Orange Lid / Black Base
• Length (Inches): 39.5
• Width (Inches): 19.5
• Height (Inches): 2.13
• Quantity Included: 1
• Channel Width: 1.339
• Number of Channels: 5-Channels
• Connector Type: Dog Bone Connector

Selection and Use

Confirm cable fit and the manufacturer’s load-rating conditions. Check connector compatibility and ramp requirements for the planned crossing.
