Product Overview

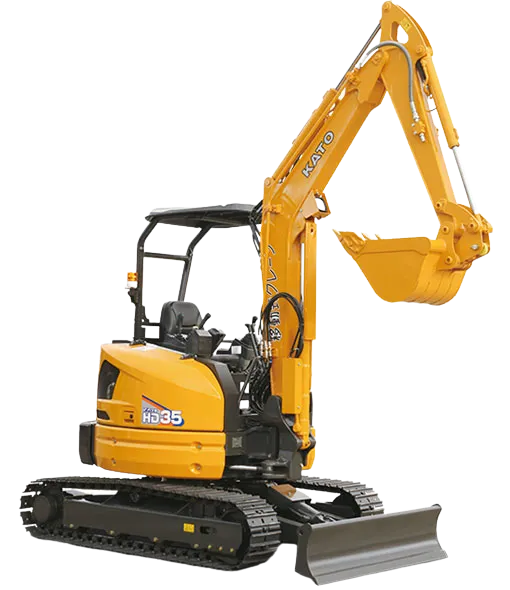

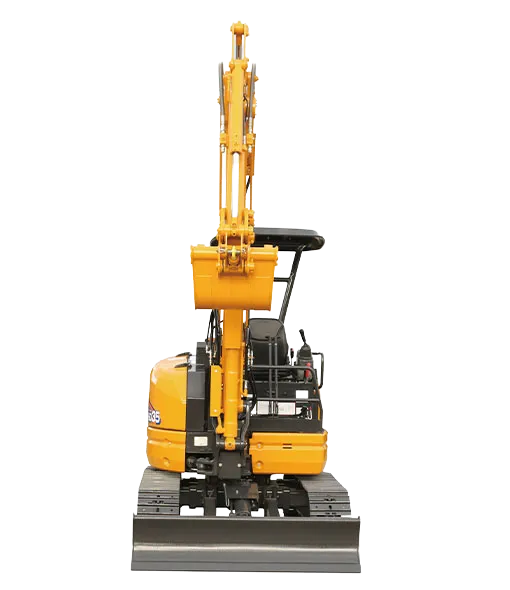

The KATO HD35V5 is a 3.5-ton mini excavator built for trenching, utilities, footings, and tight-access excavation. With 10’11” of digging depth, an offset boom, and smooth auxiliary hydraulics, this machine delivers big performance in a compact footprint.

BEST FOR:

• Utility trenching & service installs
• Footings & small foundations
• Drainage & water line work
• Residential & light commercial excavation
• Tight-access and urban job sites

WHY CONTRACTORS RENT THIS:

• 10’11” max digging depth
• 23 HP Yanmar diesel engine
• Offset boom (50° left / 80° right) for wall-side digging
• Auxiliary hydraulics (16 GPM) ready for attachments
• Low ground pressure (4.4 PSI) — easier on finished surfaces

Compact size with serious breakout force

SPECIFICATIONS:

CORE PERFORMANCE

• • Operating Weight: 8,082 lbs
  • Transport Weight: 7,606 lbs
  • Engine: Yanmar 3TNV88F
  • Power Output: 23 HP @ 2,200 RPM
  • Bucket Capacity: 3.5 ft³
  • Bucket Width: 24”

DIGGING & REACH

• • Max Digging Depth: 10’11”
  • Max Vertical Dig Depth: 9’2”
  • Max Digging Radius: 17’
  • Max Dumping Height: 12’
  • Min Front Swing Radius: 7’2”

HYDRAULICS & MOBILITY

• • Total Hydraulic Flow: 25 GPM
  • Max Auxiliary Hydraulic Flow: 16 GPM
  • Travel Speed (Low / High): 1.7 / 2.9 MPH
  • Swing Speed: 9 RPM
  • Gradeability: 30°

DOZER BLADE

• • Blade Size: 1’3” x 5’1”
  • Lift Above Ground: 1’3”
  • Drop Below Ground: 1’6”
