Manufacturer Crosby
Class Lifting Eye Bolts
Contractor Preview

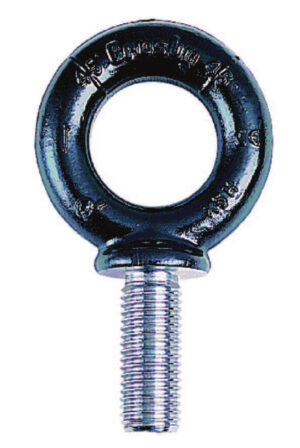

Select a Crosby shoulder eye bolt to match the metric thread and connection dimensions specified for your equipment.
Why the Pros Buy This
Forged, heat-treated steel. Metric threads. Listed capacities apply to in-line loading. Consult Crosby’s instructions for angle loading and installation.
Specifications
| Part | Shank size (mm) | In-line WLL (kg) |
|---|---|---|
| 1045753 | M6 x 13 | 200 |
| 1045789 | M8 x 13 | 400 |
| 1045833 | M10 x 17 | 640 |
| 1045869 | M12 x 20.5 | 1000 |
| 1045913 | M16 x 27 | 1800 |
| 1045995 | M20 x 30 | 2500 |
| 1046029 | M24 x 36 | 4000 |
| 1046038 | M27 x 69.8 | 5000 |
| 1046075 | M30 x 45 | 6000 |
| 1046109 | M36 x 54 | 8500 |
| 1046118 | M42 x 95.2 | 14000 |
| 1046127 | M48 x 102 | 17300 |
| 1046136 | M64 x 127 | 29500 |
Purchase Details
Price per item. Special order; Supply Haus confirms availability and delivery timing. Image represents the family.
Manufacturer Guidance
Specifications, installation, applications and warnings. Confirm thread engagement, seating and connection compatibility before use.
